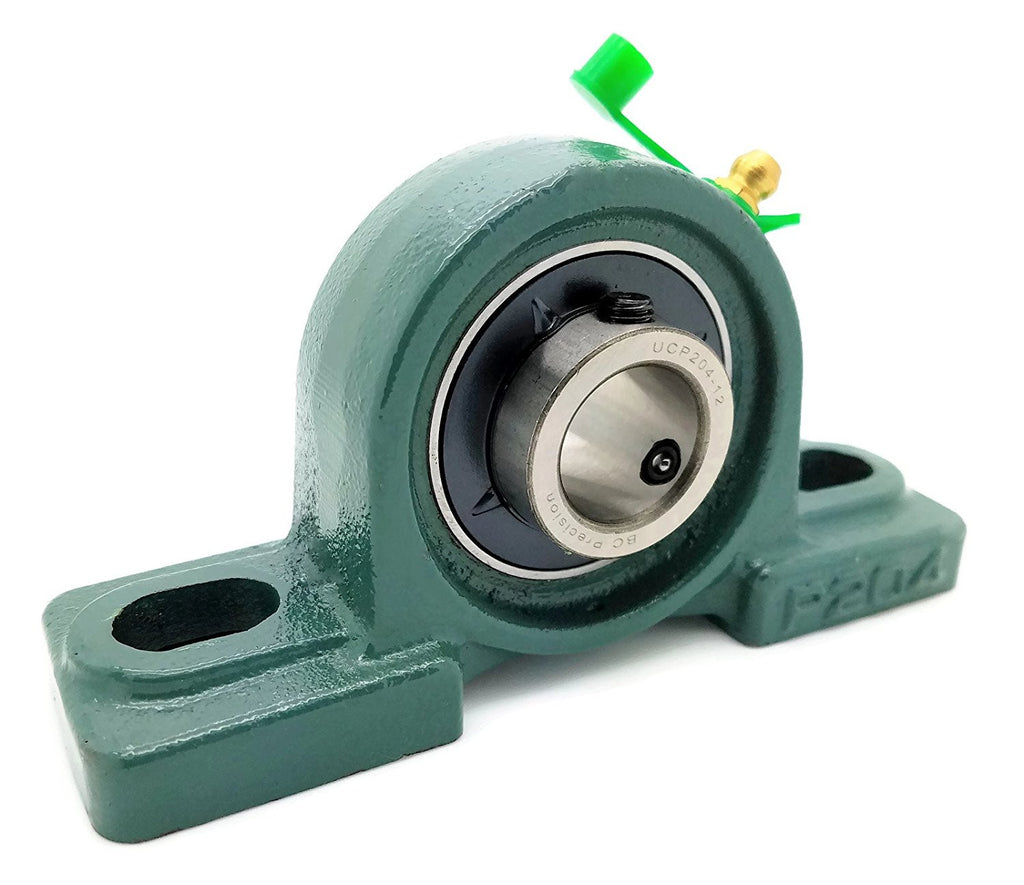

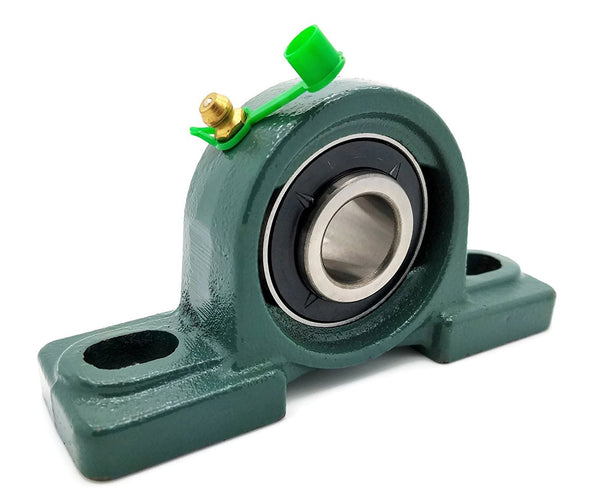

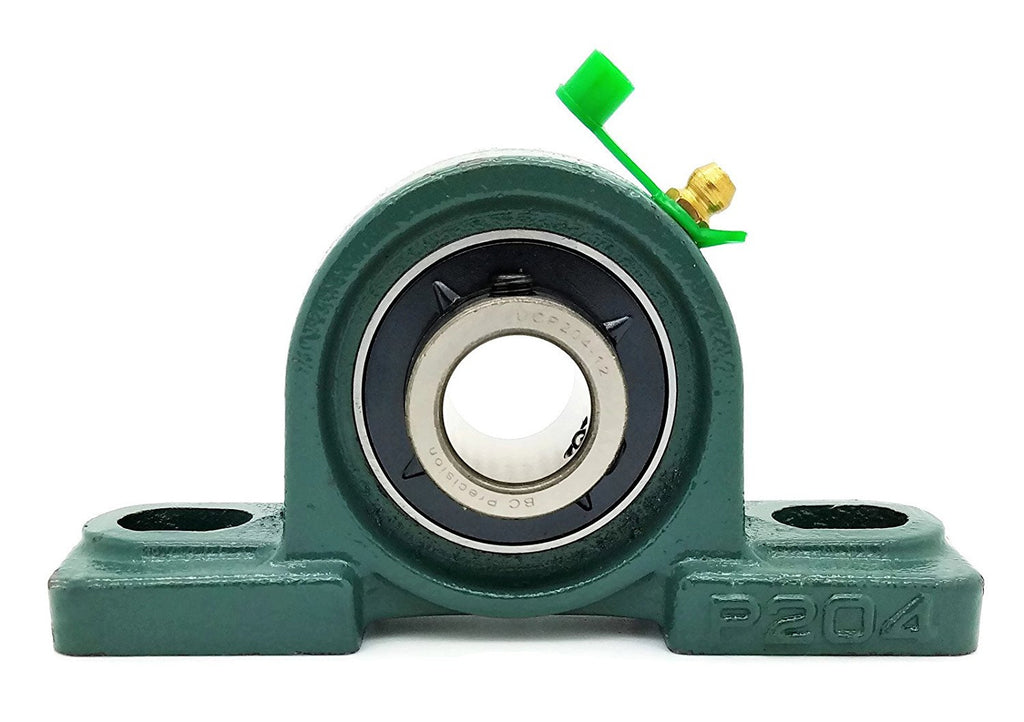

UCP204-12 Cast Iron 3/4" Pillow Block Bearing - P204

Bearing Number: UC204-12
Bore Diameter: 3/4 Inch

Weight: 1.50 lb / 0.700 Kg

Shaft Height: 33.30 mm / 1.311 Inches
Length: 127 mm / 5.000 Inches
Total Width: 38.000 mm / 1.496 Inches
Bolt Hole Spacing: 95.00 mm / 3.740 Inches
Bolt Hole Size: 13 mm / 0.512 Inches
Bolt Hole Length: 18.00 mm / 0.709 Inches
Base Height: 13.00 mm / 0.512 Inches
Total Height: 64.00 mm / 2.520 Inches
Inside Ring Width: 31 mm / 1.220 Inches

Static Load Rating: 1495 lbf / 6650 N
Dynamic Load Rating: 2878 lbf / 12800 N

The UCP204-12 features cast iron pillow block housing with a self-alignment anti-rotation device. There is also a screw locking chrome steel insert bearing in slinger seal design. It is a standard duty pillow block bearing. There are 2 set screws, a wide inner ring, and a cast iron unit with base and grease fitting. The set screws are in the ball bearing’s inner ring for locking and attaching to the shaft. The inside ring’s width is 31 mm / 1.220 inches. It can handle both static and dynamic load.
